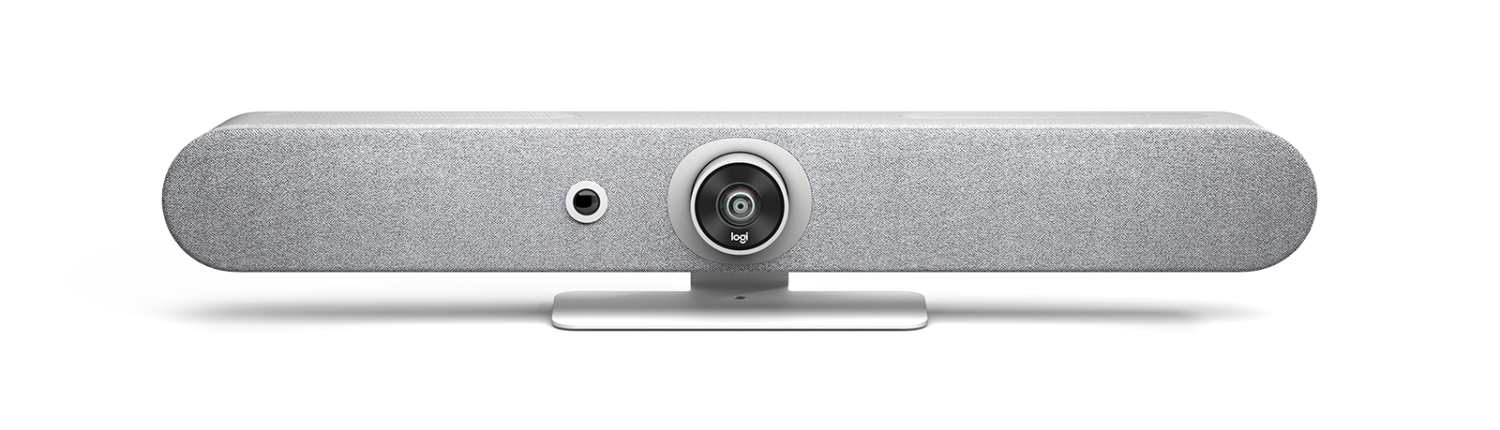

The Logitech Rally Bar Mini is the optimal all-in-one video bar for huddle rooms and small meeting spaces. It’s very easy to use, on-demand to deploy, easy to manage, while offering the features of larger video bars, such as the Logitech Rally Bar, but in a more compact format for smaller rooms. A PTZ motorized camera, room-filling speakers, and a high-sensitivity microphone array provide an optimal user experience.

Rally Bar Mini – smart system with crystal clear video

Record crystal clear video with outstanding color and exceptional optical accuracy at resolutions up to 4K (teams streaming 1080p), this is what the Rally Bar Mini offers you!

The dual camera system provides a smooth transition between all participants and is perfect for small and medium spaces. The AI viewfinder uses scene recognition to optimize RightSight autoframing and camera control features that ensure all meeting participants always stay in focus. The AI viewfinder intelligently detects which portion of the image needs to be in focus at any given time. All meeting subjects, even those who come in later, are automatically captured.

The Logitech Ralle Bar Mini provides wide-area coverage with mechanical pan and tilt, covering rooms 163° wide and 110° high. With Right Light technology, skin tones look natural even in low-light conditions.

Request a price now and receive non-binding advice

Interoperability
The Logitech Rally Bar Mini can work with any popular video conferencing software and cloud-based applications, both PC and Mac-based. Plug-and-play USB connectivity makes the Rally Bar compatible with virtually any video conferencing application. Currently, the Rally Bar is Mini Zoom™ and Zoom Rooms certified and USB certified for Microsoft Teams. Certifications for Microsoft Teams rooms on Android have been applied for.

Logitech Sync – offers comprehensive capabilities
The Logitech Snyc provides a unique platform that can monitor room status and device updates.

In addition, the dashboard provides the ability to read out room usage data captured by the AI Seeker’s people counting feature. This means that you can read out afterwards whether the meeting was as well attended as planned and draw your conclusions from this in retrospect. Such statistics are useful, for example, if you want to see at what time the room is most frequented, or whether a smaller room would suffice for certain events. All this is completely anonymous and DSGVO-compliant.

Logitech Rally Bar Mini – Key Features in a Nutshell

USB Plug-and-Play: Easily connects to virtually any PC or Mac®, no additional software required.
Appliance Mode: In addition to USB connectivity, there is the ability to run supported video conferencing applications – such as Zoom, Microsoft Teams Rooms, and others – directly on the device without the need for a computer or laptop.
All-in-one design
Streamlined, flexible installations
RightSight: speaker view frames the active speaker while showing a second view of the room to show participant interactions.
RightLight: intelligently adjusts video settings in all lighting conditions so everyone always looks their best
RightSound: AI-driven voice pickup and unwanted noise suppression provide superior clarity
One-touch joining: optional deployment with Tap to quickly and easily initiate meetings via Zoom, Microsoft Teams, and other cloud services
Logitech Sync: Single platform to monitor room health and update devices. Scalable delivery of updates
Cable management: With smart cable management, the Rally Bar Mini ensures a clean and reliable installation with secure cable management and minimal cabling.
Mounting options: The Logitech Rally Bar Mini is easy to install and manage

Logitech Rally Bar Mini Videos

Request a price now and receive non-binding advice

Technical data of the Rally Bar Mini

CERTIFICATIONS AND COMPATIBILITY

-Certifications: Zoom™ certified, certified for Microsoft Teams as a USB device. For more information on certifications applied for and granted, contact the manufacturer.
-Compatibility: USB connectivity via plug-and-play with virtually any video conferencing application.
-Appliance mode: Supports compatible video conferencing software in appliance mode (no PC required), including Zoom Rooms appliances. Certifications have been applied for Microsoft Teams Rooms on Android and other video conferencing platforms.

GENERAL

Integrated components: 6 beamforming microphones, PTZ camera, 3 speakers,
AI viewfinder, cable management and storage system, tabletop stand, Logitech CollabOS platform
Housing: All-in-one housing with integrated table stand and patented speaker suspension system
to eliminate vibration-induced camera shake and audio interference
Device management: Logitech Sync Number of displays supported: 2 Display resolution: up to 4K

CAMERA

Resolution: 4K, 1440p, 1080p, 900p, 720p and SD at 30 frames per second
Pan: motorized, ±25°
Tilt: motorized, ±15° Zoom: 4x HD digital zoom Diagonal field of view: 120°.
Horizontal field of view: 113°
Vertical field of view: 80.7° Total room coverage (field of view + pan and tilt): 163° horizontal x 110° vertical

DIMENSIONS

Height: 91.4 mm / 3.6 inches Width: 719 mm / 2.36 feet Depth: 101 mm / 3.98 inches
Lens depth: 18.5 mm / 0.73 in.
Weight: 4.03 kg (8.88 lbs)

LOUDSPEAKER

-Woofer: 70 mm/2.7 inch Midrange: 2 (38 mm/1.5 inch)
-Output: 90 dB SPL at 1 W, 99 dB SPL at 8.0 W, each +/-2 dB at half volume
-Sensitivity: 86 +/-2 dB SPL at 1 W, half volume
-THD: 1 kHz < 2
Speaker sampling rate: 48 kHz

RIGHTSENSE™ TECHNOLOGIES

RightLight™: Natural representation of skin tones for each participant.
RightSight™: Continuous spatial awareness and detection of people for automatic participant detection.
RightSound™: Distinguishes speech from other sounds to automatically amplify voices while suppressing background noise and echo.

POWER SUPPLY AND CABLES

Power supply: Automatic detection
Operating voltage/current: 100-240 V,19 V, 4.74 A
Power supply dimensions: 127 mm x 51 mm x 30 mm
DC cable: 1.5 m/4.9 feet AC cable: 1 m/3.28 feet
HDMI 1.4 cable: 2 m/6.5 feet
USB-A to USB-C 3.0 cable: 2.2 m/7.2 feet

MICROPHONES

-Frequency range: 90 Hz – 16 kHz Sensitivity: >-36 dBFS +/-1 dB at 1 Pa Microphone data rate: 48 kHz Audio range: 4.5 m/15 feet
-Beamforming elements: six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams
-Audio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
-Noise reduction: AI filter
-Auxiliary microphones: Support for up to 2 additional Rally Mic Pods

INTERFACES

HDMI output: 2
HDMI input 1
USB 3.0: 3x Type A, 1x Type C Network: 10/100/1G Ethernet WLAN: 802.11a/b/g/n/ac (MIMO)
External microphone output: Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub and Rally Mic Pod extension cable)
Remote control: Bluetooth® Low Energy

ENVIRONMENT

Operating temperature: 0 to 40 °C
Storage temperature: -40 to 70 °C
Humidity: 10 to 95
BTU/hr: 57 in standby, 64 during conferences

SECURITY

Full disk encryption: AES- 128
Data encryption: Symmetric, PKI Device ID: protected by device integrity verification
Device access: authenticated via API Key protection: Arm TrustZone, RPMP

WARRANTY

Standard: 2 year limited hardware warranty.
Extended: One year warranty extension can be purchased at the time of purchase. Please feel free to contact us!
